PEEK — Polyetheretherketone

Polyether ether ketone (PEEK) is a colourless thermoplastic polymer in the polyaryletherketone (PAEK) family. PEEK is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures. PEEK has a glass transition temperature of around 143 C and melts around 343 C. It is highly resistant to thermal degradation, as well as to attack by both organic and aqueous environments and shows high resistance to biodegradation.

Send email to us

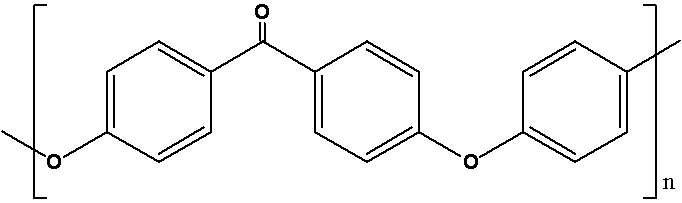

Structure

Application

Electronical industry: insulators, connectors and wafer-carrier

Mechanical engineering: gear wheels, sliding elements, compressor- and pump-components, bushings, valves and rollers

Automotive industry: clutch and gearbox components and turbocharger impeller

Conveyor technics: guidances, strokes, rollers, grippers, and valves

Medical industry: parts for surgical instruments and short term implants

Food industry: valves, blenders, strippers, dosing systems and kneaders

Oil- and gas industry: drill heads, sealings and sensors

Selected Grades

Items		Units	Test Methord	Test Condition	770G	550G	330G	550CA30	550GL30
Mechanical Properties	Tensile Strength	-	ISO 527	23℃ Break	-	-	-	250	175
	Tensile Strength	Mpa	ISO 527	23℃ Yield	100	100	100	-	-
	Tensile Elogation	%	ISO 527	23℃ Break	45	40	25	1.6	2.7
	Flexural Strength	-	ISO 178	23℃ Break	-	-	-	370	265
	Flexural Strength	MPa	ISO 178	23℃ Yield	165	170	175	-	-
	Flexural Modulus	GPa	ISO 178	23℃	4.1	4.2	4.3	22	11.3
	Compressive Strength	Mpa	ISO 604	23℃	125	125	130	300	250
	Charpy Impact Strength	kJ m-2	ISO 179/1eA	Notched	7	6	4	7	8
	Charpy Impact Strength	kJ m-2	ISO 179/1U	Unnotched	-	-	-	45	55
	Izod Imact Strength	kJ m-2	ISO 180/A	Notched	7.5	6	5	9	10
	Izod Imact Strength	kJ m-2	ISO 180/U	Unnotched	-	-	-	45	55
	Mould Shrinkage	%	ISO 294-4	Along Flow	1	1	1	0.1	0.3
	Mould Shrinkage	%	ISO 294-4	Across Flow	1.3	1.3	1.3	0.5	0.8
Thermal properties	Melting Point	℃	ISO 11357	-	343	343	343	343	343
	Glass Transition (Tg)	℃	ISO 11357	onset	143	143	143	143	143
	Special Heat Capacity	kJ kg-1 ℃-1	DSC	23℃	2.2	2.2	2.2	1.8	1.7
	Coefficient of thermal expansion	ppm K-1	ISO11359	Below Tg along the flow direction	45	45	50	5	18
	Coefficient of thermal expansion	ppm K-1	ISO11359	Higher Tg along the flow direction	120	120	120	6	18
	Heat Deflection Tempereture	℃	ISO 75A-f	1.8 Mpa	152	152	156	336	328
	Thermal Conductivity	W m-1 K-1	ISO22007-4	23℃	0.29	0.29	0.29	0.95	0.3
Flow	Melting Index	g 10min-1	ISO 1133	380℃,5kg	10	20	80	5	6
Miscellaneous	Density	g cm-3	ISO 1183	Crystalline	1.3	1.3	1.3	1.4	1.51
	Density	g cm-3	ISO 1183	Amorphous	1.26	1.26	1.26	-	-
	Shore D Hardness	-	ISO 868	23℃	85	85	85	88	88
	Water Absorption (3.2mm Thick Tensile Bar)	%	ISO 62-1	24h, 23℃	0.07	0.07	0.07	0.04	0.04
	Water Absorption (3.2mm Thick Tensile Bar)	%	ISO 62-1	23℃ Equilibrium	0.4	0.4	0.4	0.3	0.3
Electrical Data	Dielectric Strength	kV mm-1	IEC 60243-1	2mm	23	23	23	-	25
	Comparative Tracking Index	V	IEC 60112	-	150	150	150	-	150
	Dielectric Constant	-	IEC 60250	23℃, 1kHz	3	3.2	3.2	-	150
	Dielectric Constant	-	IEC 60250	23℃, 50Hz	3	4.5	-	-	-
	Loss Tangent	-	IEC 60250	23℃, 1MHz	0.004	0.003	0.004	-	0.005
	Volume Resistivity	Ω cm	IEC 60093	23℃, 1V	10¹⁶*	10¹⁶*	10¹⁶*	10⁵*	10¹⁶*
	Volume Resistivity	Ω cm	IEC 60093	275℃	10⁹*	10⁹*	10⁹*	-	-
